| 用途 Application |

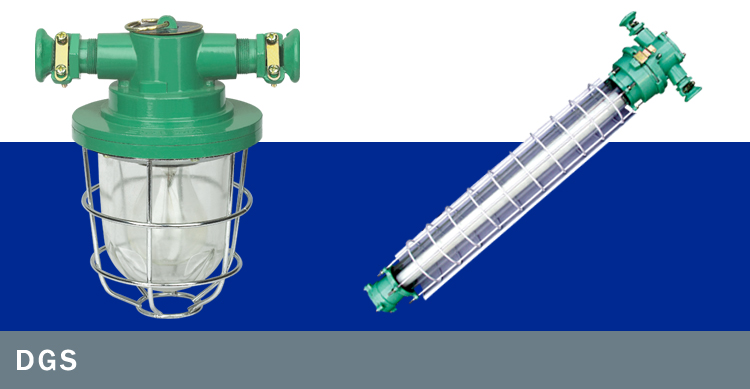

Ⅱ DGS 系列礦用隔爆型白熾燈、節能燈、熒光燈適用于具有煤塵和爆炸型氣體混合物的煤礦井下巷道及峒室內作固定式局部照明用。當熒光燈具使用于超級瓦斯礦井下車場周圍、中心變電所、泵房和主要巷道時，這些場所必須有新鮮空氣流通的條件。
Ⅱ DGS Series exploding isolation incandescent lamp,energy saving lamp and fluorescent lamp used for mining is applicable to coal mine for local illumination in tunnels and cave room where has explosive gas and coal dust. When the fluorescent lightings is applied in coach yard of super gas mine,central transformer transformer substation,pump room and main tunnels,these place should has the conditon of fresh air draughty. |
| 技術參數 Technical parameter |
| 主白熾燈、節能燈主要技術參數 Main technical parameter of incandescent lamp and energy saving lamp |
型號
Model |
額定電壓
Rated voltage |
額定功率
Rated power |
光通量
Luminous flux |
工作電流
Working current |
用電量
Electric power consumption |
節電率
Energy saving rate |
外形尺寸
Qutline size(dia.xH) |
| DGS60/127BA |
127V |
60W |
50Lm |
0.4A |
240 |
- |
Φ150X260 |
| DGS13/127JA |
127V |
13W |
650Lm |
0.1A |
52 |
78% |
Φ150X260 | |
| 熒燈主要技術參數 Main technical parameter of fluorescent |
| 型號 Model |
DGS15/127（原KBY-15） |
DGS20/127（原KBY-20） |
| 額定電壓 Rated voltage |
127V |
127V |
| 額定功率 Rated power |
15W |
20w |
| 額定電流 Starting current |
0.47-0.5A |
0.5-0.55a |
| 起動電壓 Starting voltage |
124-127V |
124-127v |
| 工作電壓 Working voltage |
58-60V |
60-63 |
| 工作電流 Working curent |
0.3-0.33A |
0.33-0.37A |
| 光通量 Luminous flux |
400Lm |
500lm |
| 引入電纜外徑 Outside diameter of nputcable |
Φ8-Φ12 |
Φ8-Φ12 |
| 外形尺寸 Outline size |
Φ115x655mm |
Φ115x810mm | |
